Nhwɛsoɔ |
ETF{0}}XS . |
|
Maximum Temp, Degree . |
1200 |
|
Ɔkɔ so yɛ adwuma temp,℃. |
1200 |
|
Tube diametereφ (mm) . |
25/40/50 |
|
Tube ɔhyew tenten, mm . |
200 |
|
Ɔhyew tenten a ɛkɔ so daa, mm . |
100 |
|
Tumi a ɛwɔ ahoɔden mu . |
220V / 50Hz . |
|
Tumi a ɛwɔ mu . |
1 |
|
Tumi a wɔde di dwuma (KW) . |
1.2 |
|
thermocouple type . |
S |
|
Chamber nneɛma . |
Ceramic fiber . |
|
ɔhyew dodow, . |
50℃/ min . |
|
Ɔhyew a ɛyɛ den,℃. |
0.5℃. |
|
Ɔhyew a ɛyɛ pɛ,℃. |
±5℃. |
|
Ne mu duru (kg) . |
25kg . |
Tags a ɛyɛ hyew .: 1200 digrii vacuum tube fononoo,test001 .
Nkyerɛmu

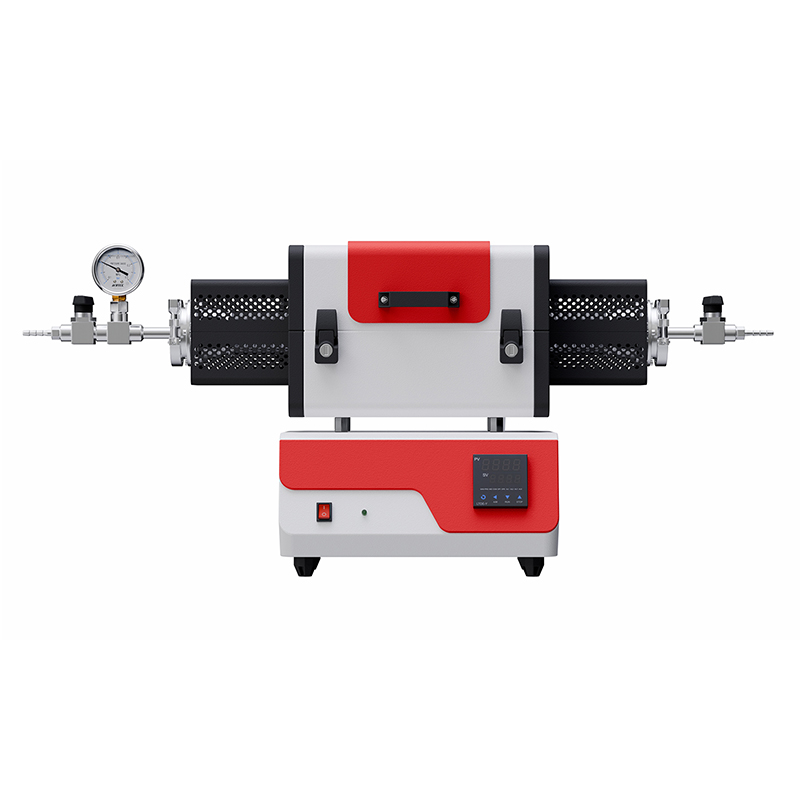

Yɛn 1200℃vacuum tube furnace hoahoa ne ho sɛ ɛyɛ cylindrical chamber nhyehyɛe a ɛkɔ anim, a ɔhyew nneɛma a ɛyɛ adwuma yiye a ɛma kwan ma ɛyɛ hyew ntɛmntɛm, ɛsan ba bio, na ɛma onwini. no atwa saa nnwinnade yi ho ahyia pɔtee sɛnea ɛbɛyɛ a ebetumi adi adwuma a ɛkorɔn ho ahwehwɛde ahorow ho dwuma, na ɛhwɛ ma ɛyɛ adwuma a ɛyɛ den na ɛtra hɔ kyɛ wɔ ne di dwuma nyinaa mu{4}}
Wɔde mprempren ahobammɔ afiri a ɛkorɔn ahyɛ mu, a ɛma afiri no som asetra kɔ soro kɛse. ne kwan a ɛyɛ fɛ na ɛyɛ mmerɛw no nyɛ nea ɛyɛ anigye wɔ aniwa so nko, na mmom ɛma adwumayɛ yɛ mmerɛw na ɛyɛ mmerɛw.
Afiri no de ɔhyew sohwɛ a ɛkɔ anim ma a ɛboa PID nsakrae, fuzzy control, ne automatic tuning, hwɛ hu sɛ ɛyɛ pɛpɛɛpɛ na ɛyɛ mmerɛw sɛ ɛbɛyɛ ɔhyew ho nhyehyɛe. ne built-in programmable controller no betumi ahwɛ nneɛma a ɛkɔ soro kodu 50 so, na ama wɔn a wɔde di dwuma no atumi ayɛ ɔhyew dwumadi ahorow no sɛnea ɛbɛyɛ a wobetumi adi wɔn ahwehwɛde pɔtee ho dwuma.
Wɔde mframa a ɛyɛ den a ɛkorɔn ne nhyɛso a ɛwɔ mu a ɛyɛ adwuma ankasa, a ɛma ahobammɔ ne ahoɔden a ɛyɛ adwuma yiye no tu mpɔn. corrosion-resistant structure no ma awerɛhyem sɛ nnwinnade no yɛ adwuma yiye bere tenten, na ɛma ɛfata ma aduruyɛdan mu nneɛma ahorow.
Ɔpɛ
Atumi akɔ laptop so ama remote control, real-time monitoring, abakɔsɛm mu data logging, ne data a wɔde fi adi, a ɛma adwumayɛ mu ahotɔ ne data sohwɛ yɛ kɛse.
Nea ɛka ho ne nneɛma foforo a wɔde di dwuma ma wɔde di dwuma bere tenten na ɛyɛ mmerɛw.
Features a touchscreen temperature controller a ɛwɔ ɔhyew curves, a ɛma kwan ma ɛyɛ mmerɛw sɛ wobɛhwɛ so na woabɔ one-click process switching.
Wɔde krataa a wɔde kyere nsɛm a ɛnyɛ krataa a wɔde kyerɛw dijitaal data a ɛyɛ adwuma yiye na wɔkora so. ahyɛ mu.
Nea ɛka ho ne alarm akanea ne buzzer ma kɔkɔbɔ ahorow a ɛkɔ so ntɛm ara ne ahobammɔ sohwɛ a ɛkɔ soro.
Nsakraeɛ a ɛyɛ kɛseɛ ma ɛyɛ flanges a ɛko tia corrosion ma ɛyɛ den na ɛyɛ adwuma yie wɔ mmeaeɛ a ɛyɛ den.
Ɛwɔ casing a ɛwɔ mmue a wɔayɛ ama Xenon kanea hann fibea simulation, a ɛma kwan ma wɔyɛ sɔhwɛ ahorow titiriw.
Ɔde quartz tubes a wɔayɛ no sɛnea wɔpɛ a wɔayɛ no sɛnea ɛfata ma adwumayɛ ne sɛnea wotumi yɛ nneɛma pii.
Ɛba a ɛwɔ gyinabea a ɛda hɔ, a ɛma ɛyɛ mmerɛw sɛ wɔbɛdan afiri no ma ayɛ gyinabea a ɛda hɔ ama adwumayɛ a ɛyɛ adwuma pii.
Wɔde akwan abiɛsa valve nhyehyɛe a ɛma kwan ma bere koro mu vacuuming ne inert gas nnianim asɛm, ma nhyehyɛe no mu mmɔdenbɔ ne control.
Optional vacuum pump and oil mist filtration system a ɛwɔ hɔ ma vacuuming adwumayɛ a ɛyɛ adwuma yiye na ɛho tew.
Su
Mprempren ahobammɔ a ɛkorɔn no hwɛ hu sɛ ɛbɛtra hɔ akyɛ wɔ ɔsom adwuma mu.
Ɔhyew a ɛkɔ soro .
Ɔhyew a ɛyɛ pɛ a wɔkyekyɛ.
Ɛnyɛ den sɛ wode bedi dwuma wɔ PID nsakrae, fuzzy control, ne self-tuning functions.
Programmable controller a ɛwɔ afã 50.
betumi akɔ laptop so ama remote control, bere ankasa mu tracking, abakɔsɛm a wɔkyere gu so, ne data a ɛba.
Ɔhyew a ɛboro so ne anyinam ahoɔden a ɛbɔ ho ban.
airtight na ɛno ankasa sesa nhyɛso a ɛwɔ tube no mu bere a ɛkorɔn.
Nneɛma a ɛko tia corrosion .
Dade a ɛnyɛ den a wɔakyerɛw so a wɔakyerɛw so.
Abisadeɛ
Wɔde 1200℃vacuum tube furnace no di dwuma kɛse wɔ nnwuma pii mu, a nea ɛka ho ne dade, ahwehwɛ a wɔyɛ, ɔhyew a wɔde yɛ aduru, lithium battery anode ne cathode nneɛma, ahoɔden a wɔyɛ no foforo, ne abrasives. Ɛfata nso ma ɔhyew ayaresa wɔ tebea horow a atwa yɛn ho ahyia mu.
Saa fononoo a ɛtumi sesa yi nso wobetumi de aka CVD nhyehyɛeɛ ho de ayɛ adeɛ a wɔde kata adeɛ so no ayɛ mmerɛ na ama sɔhwɛ aba a mfasoɔ wɔ so ama dwumadie ahodoɔ. ne versatility ma ɛyɛ adwinnadeɛ a ɛho nhia a wɔde sua adeɛ na wɔyɛ wɔ mmeaeɛ a wɔde asi hɔ ne deɛ ɛyɛ foforɔ.
q&a
Asɛmmisa: So metumi anya bo a ɛba fam sɛ mekra ade kɛse a?
A: Yiw, nneɛma akɛse a wɔkra no betumi anya bo a ɛba fam.
Asɛmmisa: So metumi de nhwɛsode bi amena wo ma woasɔ fononoo no ahwɛ ansa na matɔ?
A: Yiw, wubetumi.
Q: Bere bɛn na wode me order no bɛmena?
A: Wɔtaa de nneɛma a ɛyɛ pɛpɛɛpɛ mena wɔ dapɛn biako mu bere a wɔanya sika a wɔde tua ho ka. amanne kwan so nneɛma a wɔde mena wɔ nnafua 30 ntam, anaasɛ sɛnea nneɛma dodow a wɔkra ne nea wɔyɛ ho nhyehyɛe kyerɛ.
Q: Dɛn ne quality guarantee bere no?
A: Afe biako!
Asɛmmisa: Wobɛyɛ dɛn ahwɛ ahu sɛ nneɛma a wɔyɛ no yɛ papa?
A: Yɛwɔ bɛboro mfeɛ 10 osuahu wɔ saa afuo yi mu. Yɛwɔ nhyehyɛeɛ a ɛyɛ den a ɛhwɛ nneɛma pa so wɔ yɛn adeyɛ nhyehyɛeɛ mu. afiri biara a wɔawie no yɛ nhwehwɛmu 4 ansa na wɔde nneɛma a wɔde kyekyere nneɛma akɔ.
Asɛmmisa: So woyɛ adwumakuw bi a woyɛ adwuma anaasɛ woyɛ aguadi adwuma?
A: Yɛyɛ manufacturer a yɛyɛ adwuma titiriw wɔ adwumayɛ, adetɔn, ne ɔsom a wɔaka abom afiri a wɔde yɛ nhwehwɛmu ne nnwinnade a wɔde yiyi nneɛma mu. esiane yɛn nnwuma mu osuahu a ɛyɛ den ne yɛn aguadi tumi nti, yɛn cus .
